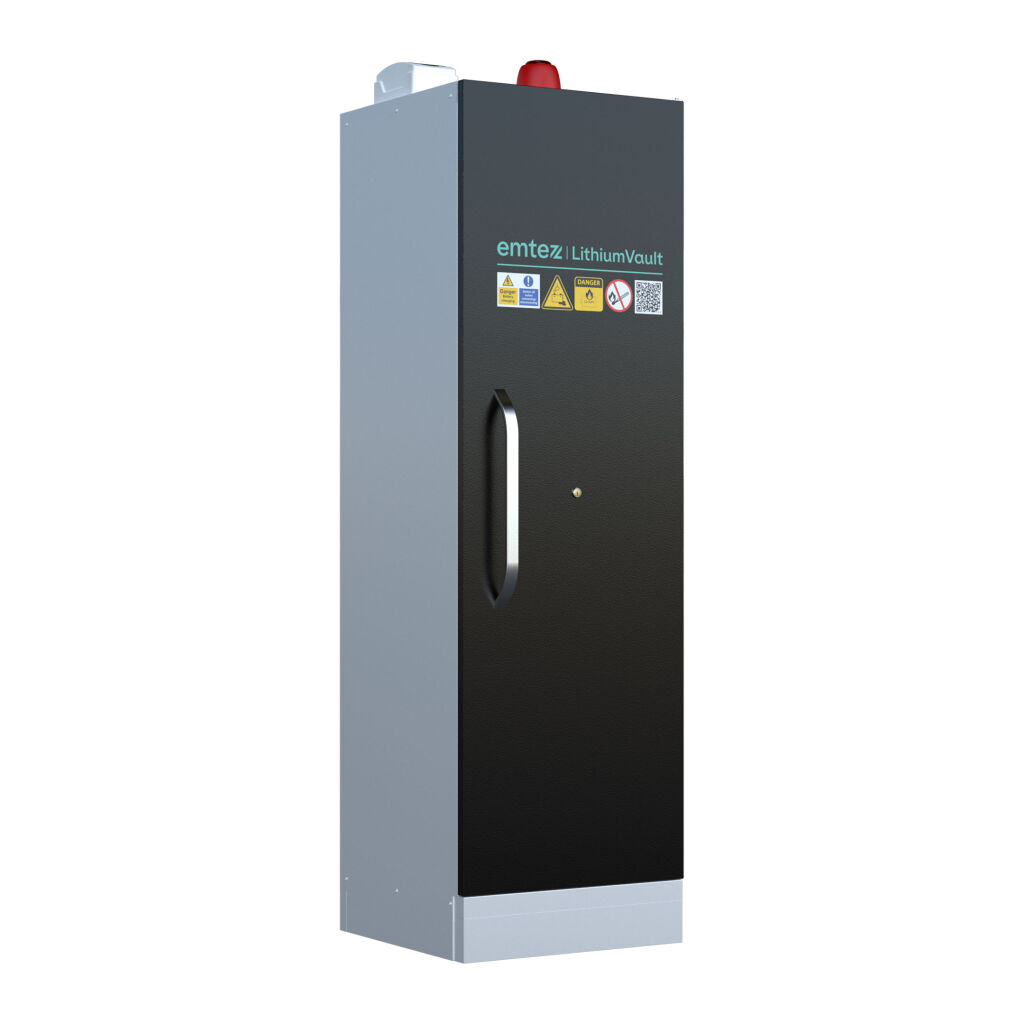

Lithium cabinet storage and charging space for lithium batteries
W: 595, D: 600, H: 2150 (mm)|Article code: 1947424
Price per item
:
€ 7.497,95
€ 9.372,44 inc. VAT
Quantity
Specifications
Article code:
1947424
Width (mm)
595
Internal width (mm)
496
Height (mm)
2150
Internal height (mm)
1540
Depth (mm)
600
Internal depth (mm)
446
Weight (kg)
210
Loading capacity (kg)
360
Volume (ltr)
340
Load capacity per shelf (kg)
60
Material
steel
Colour
black
Surface treatment
electro-galvanized
Front
1 closed hinged door
Base
base
Type
Lithium cabinet
Implementation
storage and charging space for lithium batteries
Type of shelf
grid
Number of shelves
4 shelves
Fire resistant
90 minutes
Certification
CE certified
Norm
EN 14470-1
Article arrangement
New
EAN Code (Gtin):
8719424256710
Description
LithiumVault FirePro® cabinet with charging in 6 compartments, 1-door, tall.
Fire-resistant safety cabinet 90 minutes, for individual safe storage & charging of lithium-ion batteries. Each compartment is equipped with an electronic code lock and a socket with 3 charging points. The integrated detection system will send a signal to the visual and audible alarm in case of increased temperature or smoke development to notify personnel. The FirePro generator is activated by a Thermo Bulb that bursts from 70°C. The FirePro suppresses the Thermal Runaway for up to 30 minutes.
- 90 minutes fire resistance.
- In accordance with EN14470-1 TYPE 90.
- Insulating rock wool panels certified non-combustible A2-s1-d0 in accordance with EN 13501-1, with a fire resistance of 90 minutes - validated by a destructive test in accordance with EN 1363-1 - providing protection against thermal hazards in the event of a fire breaking out inside the cabinet.
- Steel construction.
- Cabinet with transport feet and plinth.
- Internal finish in melanin, highly resistant to chemical and aggressive vapors.
- Door closing system of main door with 50°C thermofuse.
- Automatic fire damper at air inlet and outlet, closes at 70°C.
- Spark-free hinges.
- Painted steel drip tray on floor.
- Autonomous FirePro aerosol generator with thermo bulb activator from 70°C.
- 6 compartments with electronic code lock and 3 outlets per compartment.
- Maximum power output: 11.96kW.
- 32A differential current under
- Type of key electronic: code lock
- Door locks: 1 (2 keys supplied)
Fire-resistant safety cabinet 90 minutes, for individual safe storage & charging of lithium-ion batteries. Each compartment is equipped with an electronic code lock and a socket with 3 charging points. The integrated detection system will send a signal to the visual and audible alarm in case of increased temperature or smoke development to notify personnel. The FirePro generator is activated by a Thermo Bulb that bursts from 70°C. The FirePro suppresses the Thermal Runaway for up to 30 minutes.
- 90 minutes fire resistance.
- In accordance with EN14470-1 TYPE 90.
- Insulating rock wool panels certified non-combustible A2-s1-d0 in accordance with EN 13501-1, with a fire resistance of 90 minutes - validated by a destructive test in accordance with EN 1363-1 - providing protection against thermal hazards in the event of a fire breaking out inside the cabinet.
- Steel construction.
- Cabinet with transport feet and plinth.
- Internal finish in melanin, highly resistant to chemical and aggressive vapors.
- Door closing system of main door with 50°C thermofuse.
- Automatic fire damper at air inlet and outlet, closes at 70°C.
- Spark-free hinges.
- Painted steel drip tray on floor.
- Autonomous FirePro aerosol generator with thermo bulb activator from 70°C.
- 6 compartments with electronic code lock and 3 outlets per compartment.
- Maximum power output: 11.96kW.
- 32A differential current under
- Type of key electronic: code lock
- Door locks: 1 (2 keys supplied)
