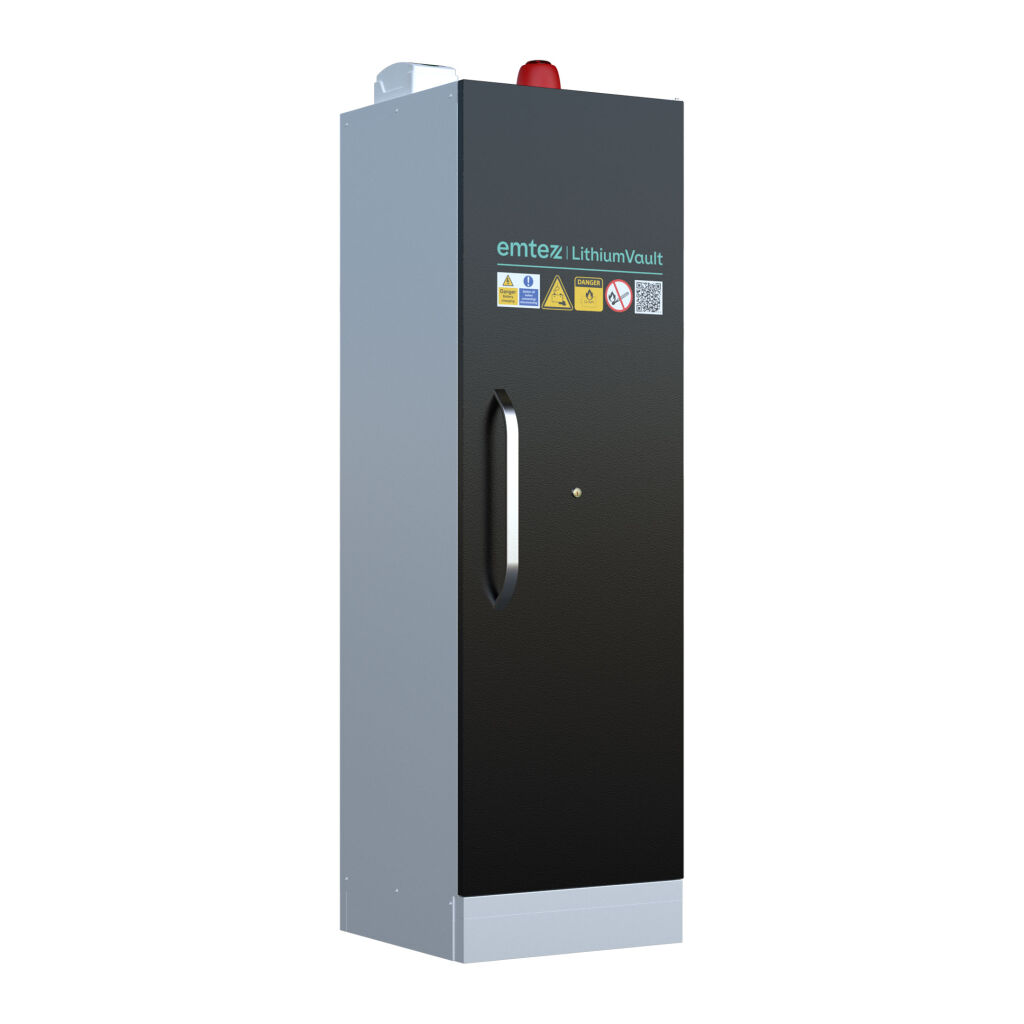

Lithium cabinet storage and charging space for lithium batteries
W: 595, D: 600, H: 2150 (mm)|Article code: 1947426
Price per item
:
€ 8.389,95
€ 10.487,44 inc. VAT
Quantity
Specifications
Article code:
1947426
Width (mm)
595
Internal width (mm)
496
Height (mm)
2150
Internal height (mm)
1540
Depth (mm)
600
Internal depth (mm)
446
Weight (kg)
210
Loading capacity (kg)
360
Volume (ltr)
340
Load capacity per shelf (kg)
60
Material
steel
Colour
black
Surface treatment
electro-galvanized
Front
1 closed hinged door
Base
base
Type
Lithium cabinet
Implementation
storage and charging space for lithium batteries
Type of shelf
grid
Number of shelves
4 shelves
Fire resistant
90 minutes
Certification
CE certified
Norm
EN 14470-1
Article arrangement
New
EAN Code (Gtin):
8719424256741
Description
LithiumVault FirePro® cabinet in 6 compartments with charging and control panel, 1 door, high.
Fire-resistant safety cabinet 90 minutes, for the individual safe storage & charging of lithium-ion batteries. Each compartment is equipped with an electronic code lock and a socket with 3 charging points. The integrated detection system will send a signal to the visual and audible alarm in case of increased temperature or smoke development to warn personnel. The FirePro generator is activated by the smoke and thermal detector present in the cabinet. The FirePro suppresses the Thermal Runaway for a maximum of 30 minutes.
- 90 minutes fire resistance.
- In accordance with EN14470-1 TYPE 90.
- Insulating stone wool panels certified non-combustible A2-s1-d0 in accordance with EN 13501-1, with a fire resistance of 90 minutes - validated by a destructive test in accordance with EN 1363-1 - which provide protection against thermal hazards in the event of a fire in the cabinet.
- Steel construction.
- Cabinet with transport feet and plinth.
- Internal finish in melanin, highly resistant to chemical and aggressive vapours.
- Main door closing system with 50°C thermofuse.
- Automatic fire damper at air inlet and outlet, closes at 70°C.
- Spark-proof hinges.
- Painted steel drip tray on the floor. - FirePro aerosol generator for automatic suppression in case of ‘Thermal Runaway’ of Lithium-Ion batteries, activated by FPC-2V2 fire alarm panel.
- Equipped with potential-free contact for connection to the building’s fire alarm control panel.
- 6 compartments with electronic code lock and 3 sockets per compartment.
- Maximum power: 11.96kW.
- 32A differential circuit breaker, 5G6mm2 cable section and 32A 3P+N+A
- 400V tetra-polar plug.
- Door locks 1 (2 keys supplied)
