Corner protectors corner edge protector 90 degree bend
Type corner edge protector|L: 235, W: 235, H: 400 (mm)|Article code: 109-0001-9136

Price per item (excl. shipping costs) :
€ 36,45
€ 45,56 inc. VAT
Quantity
Your transport advantage -65%
26 October delivered
Free pick up in Wapenveld
Select a version of this product
  • Choose type
Delivery time
corner edge protector New 90 degree bend yellow steel powder-coated 70 70 300 inside 5 - including mounting material 109-0001-9135 € 11,45 26 October delivered
corner edge protector New 90 degree bend yellow steel powder-coated 160 160 400 inside 5 - including mounting material 109-0001-9137 € 26,45 26 October delivered
scaffold protector New longitudinal guidance yellow steel powder-coated 850 850 170 inside 5 - - 109-0001-9139 € 29,45 26 October delivered
corner edge protector New 90 degree bend yellow steel powder-coated 235 235 400 inside 5 - including mounting material 109-0001-9136 € 36,45 26 October delivered
scaffold protector New longitudinal guidance yellow steel powder-coated 2300 2300 170 inside 5 - - 109-0001-9138 € 69,45 26 October delivered
scaffold protector New collision protector yellow steel painted 866 866 400 inside 5 - including mounting material 109-0001-850 € 89,50 By arrangement
scaffold protector New collision protector yellow steel painted 2494 2494 400 inside 5 - including mounting material 109-0001-2300 € 149,50 26 October delivered

Specifications

Article code:
109-0001-9136
Length (mm)
235
Width (mm)
235
Height (mm)
400
Material
steel
Colour
yellow
Ral colour
1003
Surface treatment
powder-coated
Material thickness (mm)
5
Type
corner edge protector
Implementation
90 degree bend
Additional specifications
Without mounting material!
Usage
inside
Assembly supplies
including mounting material
Article arrangement
New
EAN Code (Gtin):
8719424276299

Description

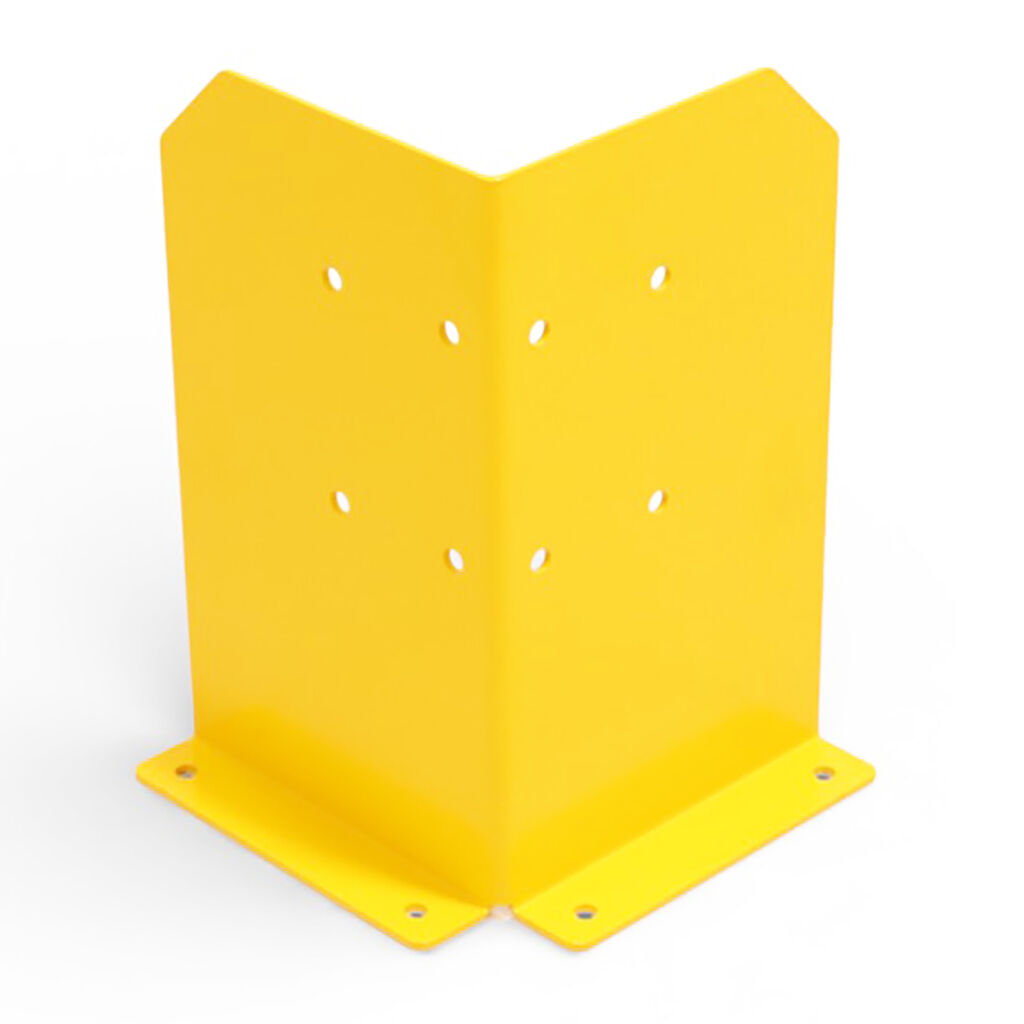

Steel Corner Protector 90° – Impact Protection Yellow (235 × 235 × 400 mm)

This 90-degree steel corner protector is designed for optimal impact protection of vulnerable corners in warehouses, parking garages, production areas, and logistics environments. Thanks to its robust construction made of S235JR steel (5 mm thick), this corner protector offers maximum protection against damage from forklifts, pallet jacks, and other internal transport equipment.

The striking yellow powder coating (RAL 1003) not only provides a durable finish but also increases visibility and safety in the workplace.

Key benefits:

- Heavy-duty industrial quality – manufactured from high-quality S235JR steel
- Effective crash protection for wall corners, shelving, and columns
- High visibility thanks to the yellow RAL 1003 powder coating
- Easy and secure installation thanks to large drill holes
- Suitable for combination with horizontal beams

Technical specifications:

- Corner protector / crash protection 90°
- Height: 400 mm
- Side dimensions: 235 × 235 mm
- Material thickness: 5 mm
- Material: S235JR steel
- Finish: Powder-coated RAL 1003 (yellow)
- Base plates: 226 × 50 mm
- Base plate drill holes: Ø 12 mm
- Side mounting holes: Ø 12 mm (suitable for mounting horizontal beams)
- Rounded edges: R10 (4x) for added safety
