Corner protectors corner edge protector 90 degree bend
Type corner edge protector|L: 160, W: 160, H: 400 (mm)|Article code: 109-0001-9137
Price per item
(excl. shipping costs)
:
€ 26,45
€ 33,06 inc. VAT
Quantity
Your transport advantage
-71%
Order 143 more get
Order 143 more get
26 October delivered
Free pick up in Wapenveld
Select a version of this product
- Choose type Type
| Delivery time | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
corner edge protector | New | 90 degree bend | yellow | steel | powder-coated | 70 | 70 | 300 | inside | 5 | - | including mounting material | 109-0001-9135 | € 11,45 | 26 October delivered | |
|
corner edge protector | New | 90 degree bend | yellow | steel | powder-coated | 160 | 160 | 400 | inside | 5 | - | including mounting material | 109-0001-9137 | € 26,45 | 26 October delivered | |
|
scaffold protector | New | longitudinal guidance | yellow | steel | powder-coated | 850 | 850 | 170 | inside | 5 | - | - | 109-0001-9139 | € 29,45 | 26 October delivered | |
|
corner edge protector | New | 90 degree bend | yellow | steel | powder-coated | 235 | 235 | 400 | inside | 5 | - | including mounting material | 109-0001-9136 | € 36,45 | 26 October delivered | |
|
scaffold protector | New | longitudinal guidance | yellow | steel | powder-coated | 2300 | 2300 | 170 | inside | 5 | - | - | 109-0001-9138 | € 69,45 | 26 October delivered | |
|
scaffold protector | New | collision protector | yellow | steel | painted | 866 | 866 | 400 | inside | 5 | - | including mounting material | 109-0001-850 | € 89,50 | By arrangement | |
|
scaffold protector | New | collision protector | yellow | steel | painted | 2494 | 2494 | 400 | inside | 5 | - | including mounting material | 109-0001-2300 | € 149,50 | 26 October delivered |
Specifications
Article code:
109-0001-9137
Length (mm)
160
Width (mm)
160
Height (mm)
400
Material
steel
Colour
yellow
Ral colour
1003
Surface treatment
powder-coated
Material thickness (mm)
5
Type
corner edge protector
Implementation
90 degree bend
Additional specifications
Without mounting material!
Usage
inside
Assembly supplies
including mounting material
Article arrangement
New
EAN Code (Gtin):
8719424276275
Description

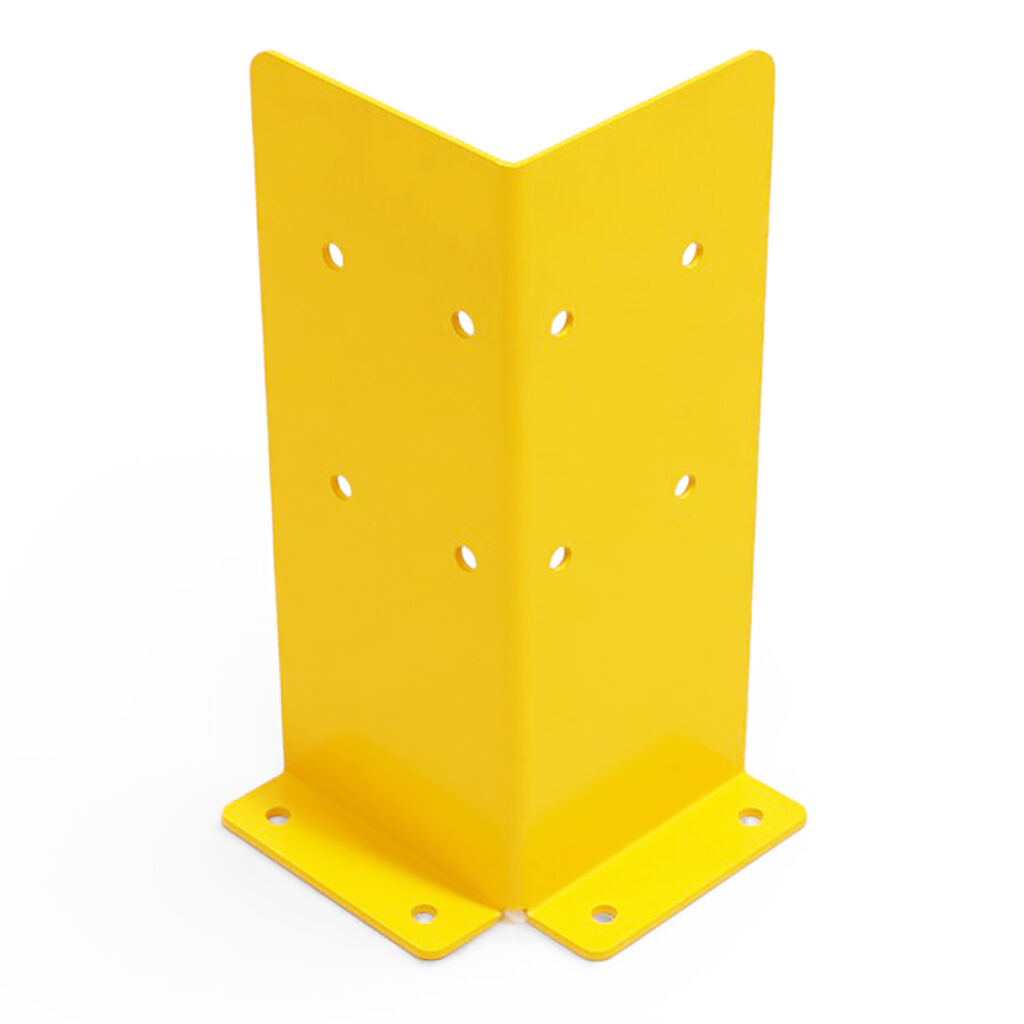

Steel Corner Protector 90° – Yellow Impact Protection (160 × 160 × 400 mm)
This 90-degree steel corner protector is a compact yet extremely robust solution for protecting vulnerable corners in warehouses, workshops, parking garages, and industrial environments. Made of 5 mm thick S235JR steel, this impact protector offers high resistance to collision damage from forklifts, pallet jacks, and other internal transport equipment.
The durable RAL 1003 yellow powder coating ensures maximum visibility and contributes to a safer working environment.
Benefits of this corner protector:
- Robust impact protection for walls, columns, and shelving
- Industrial steel S235JR (5 mm) for long-lasting protection
- High signal strength thanks to the yellow RAL 1003 powder coating
- Compact size, ideal for smaller spaces
- Prepared for mounting horizontal beams
Technical specifications:
- Type: 90° corner impact protection
- Height: 400 mm
- Side dimensions: 160 × 160 mm
- Material thickness: 5 mm
- Material: Steel S235JR
- Finish: Powder coated RAL 1003 (yellow)
- Base plates: 151 × 50 mm
- Base plate drilling holes: Ø 12 mm (4x)
- Side mounting holes: Ø 12 mm, suitable for horizontal beams
- Rounded edges: R10 (4x) for added safety
This 90-degree steel corner protector is a compact yet extremely robust solution for protecting vulnerable corners in warehouses, workshops, parking garages, and industrial environments. Made of 5 mm thick S235JR steel, this impact protector offers high resistance to collision damage from forklifts, pallet jacks, and other internal transport equipment.
The durable RAL 1003 yellow powder coating ensures maximum visibility and contributes to a safer working environment.
Benefits of this corner protector:
- Robust impact protection for walls, columns, and shelving
- Industrial steel S235JR (5 mm) for long-lasting protection
- High signal strength thanks to the yellow RAL 1003 powder coating
- Compact size, ideal for smaller spaces
- Prepared for mounting horizontal beams
Technical specifications:
- Type: 90° corner impact protection
- Height: 400 mm
- Side dimensions: 160 × 160 mm
- Material thickness: 5 mm
- Material: Steel S235JR
- Finish: Powder coated RAL 1003 (yellow)
- Base plates: 151 × 50 mm
- Base plate drilling holes: Ø 12 mm (4x)
- Side mounting holes: Ø 12 mm, suitable for horizontal beams
- Rounded edges: R10 (4x) for added safety
